Product Overview

This QM-105HY configuration runs on an RK3588 motherboard with 16+512G memory, aimed at large venues that need a responsive Android system alongside a very large screen. The RK3588 platform handles heavier multi-window use, larger presentations and longer sessions than entry-level boards.

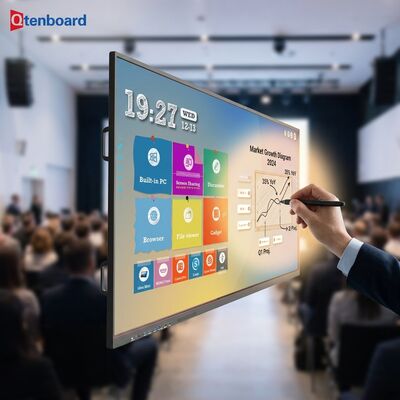

The 105 inch 4K 3840 x 2160 panel uses an infrared touch frame with 40-50 touch points, so annotation works with pen, finger or a pointer at the front of a large room. Windows can be added through the OPS slot where presenters need desktop software.

Key Features

• RK3588 Motherboard: Higher performance platform for multi-window use and large files.
• 16+512G Memory: Generous storage for presentations, recordings and installed applications.
• Infrared Touch Frame: Reliable touch response across a very large surface.
• 105 Inch 4K Panel: Large display for halls where a 86 inch screen is too small.
• 40-50 Touch Points: Multi-user annotation at the front of a large room.
• Android 14.0 System: Modern system with broad application support.

Application Scenarios

• Large Meeting Halls: Presentations to a big audience with live annotation.
• University Auditoriums: Lectures and academic sessions in large rooms.
• Training Auditoriums: Certification courses delivered to large groups.
• Government Conference Rooms: Official sessions with shared documents.
• Enterprise Town Hall Spaces: Company-wide briefings and announcements.
• Medical Teaching Rooms: Case discussion displayed at large scale.

Hardware & Specifications

Panel weight and packing dimensions for the 105 inch size are confirmed on the quotation.

Interactive Whiteboard & Software

Android 14.0 on the RK3588 platform supports smooth whiteboard work, multi-window content and document handling on a 105 inch canvas, which helps when several files are open in one session.

Writing, annotation, page management and export work as on smaller models, and larger memory allows more saved material on the panel. Where Windows software is required, the OPS module provides the same touch input.

Connectivity & Collaboration

The large venue configuration keeps multiple inputs available for stage use and fixed installations.

• HDMI and USB inputs for lectern PCs, players and storage.
• OPS slot for a Windows i5/i7 module.
• Wi-Fi for cloud content and wireless presentation.
• External audio output for hall sound systems.
• Wall mount or heavy-duty stand installation.

Design & Usability

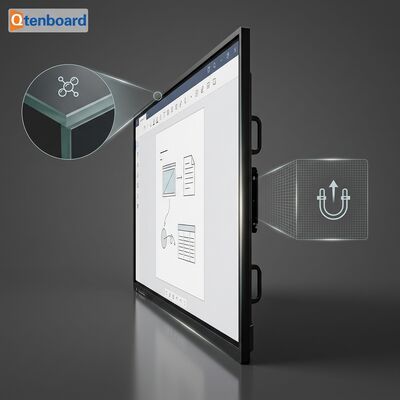

The infrared touch frame is integrated behind a flat front glass, keeping the writing surface continuous on the large panel. Because of its size, the unit is installed on a reinforced wall structure or a heavy-duty mobile stand.

Customization & B2B Support

Boot screen, logo, packaging and system configuration can be customized, and memory or chipset selection is fixed per project. OEM and ODM supply is available from MOQ 5 pieces.

Quality & Compliance

Large panels are inspected for uniformity, infrared touch accuracy and finish before packing in reinforced wooden cases. Products carry CE, RoHS and CCC certification and a 1 year warranty, with installation guidance for heavy displays.

Project Scenario

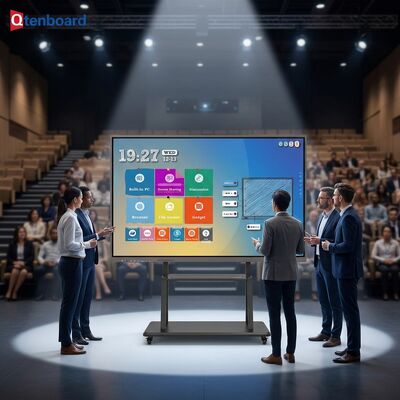

In a typical auditorium installation, the 105 inch panel sits at the front of the hall and runs presentations from its own Android system, with a Windows module available for specialist software. Speakers annotate slides live and the session files are exported afterwards. Mounting structure, viewing distance and signal routing are agreed during project planning.

FAQ

Request a Quote

Request specifications for the QM-105HY RK3588 version, or discuss your large venue project with us for mounting, memory configuration and delivery planning.
