Product Overview

The QM-86HY is an 86 inch interactive smart board for lecture rooms and larger teaching spaces where several people work at the screen at the same time. 50 touch points and 4mm tempered glass support group problem solving, while the 4K 3840 x 2160 panel keeps small text readable from the back rows.

The display is sized for rooms of roughly 60 to 120 seats, where a 65 or 75 inch unit would be too small for text-heavy material. Android 14.0 runs the whiteboard and content apps, and a Windows OPS module can be added when the faculty uses its own simulation or statistics software.

Key Features

• 50 Touch Points: Several students can write and drag on the board together during group exercises.
• 86 Inch 4K Panel: Large 3840 x 2160 surface keeps dense text and tables legible in lecture rooms.
• 4mm Tempered Glass: Durable writing surface for high-traffic teaching buildings.
• Android 14.0 System: Whiteboard and content apps start without an external computer.
• Annotation Over Content: Mark up slides, PDFs and images during explanation and save the result.
• Windows OPS Option: Add a Windows i5/i7 module for faculty-specific software.

Application Scenarios

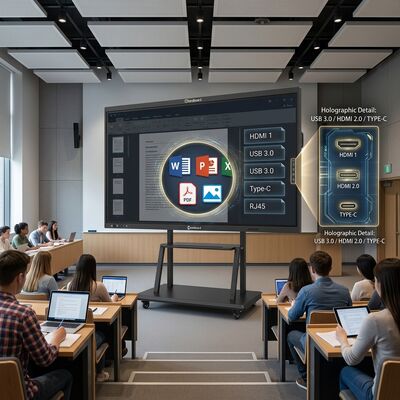

• University Lecture Rooms: Lectures with slides, handwriting and live annotation in front of a large group.
• Seminar and Tutorial Rooms: Group problem solving where students come to the board together.
• Engineering Teaching Labs: Technical explanation combined with Windows-based software.
• Teacher Training Halls: Demonstration lessons shown to a larger audience.
• Conference Breakout Rooms: Parallel sessions that need writing plus presentation.
• Corporate Learning Centres: Certification courses with mixed presentation and group work.

Hardware & Specifications

Interactive Whiteboard & Software

The whiteboard software supports simultaneous writing, erasing, page management and document display. In a lecture, the teacher can open a slide deck, write over it, create a new page for a worked example and export the full set as one file.

Annotation also works over imported images, PDFs and application windows, which suits technical subjects where a diagram is marked up step by step. Saved pages can be reopened for revision sessions, so the same board content carries across weeks.

Connectivity & Collaboration

The QM-86HY accepts common classroom sources and supports wireless presentation for group work.

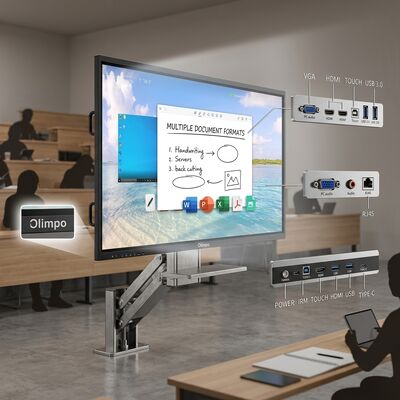

• HDMI and USB ports for laptops, visualisers and USB drives.
• OPS slot for a Windows i5/i7 module.
• Wi-Fi connection for cloud material and wireless casting.
• Multiple devices can cast to the panel for student presentations.
• External USB camera can be added for recorded or remote lectures.

Design & Usability

A wide 86 inch front surface with a slim bezel keeps the writing area large relative to overall size. The unit can be wall-mounted in a fixed position or mounted on a mobile stand for shared use between rooms.

Customization & B2B Support

For tender and distributor orders, boot screen, logo, packaging and system configuration can be customized, and the touch and memory configuration is fixed per project. OEM and ODM supply is available from MOQ 5 pieces.

Quality & Compliance

Each panel is assembled with 4mm tempered glass and checked for touch accuracy and display uniformity before packing. Products carry CE, RoHS and CCC certification and ship in wooden cases or flight cases with foam protection under a 1 year warranty.

Project Scenario

A typical project equips each lecture room in a teaching building with one 86 inch panel, replacing a projector plus a fixed whiteboard. Lecturers write at the board as before, then export annotated pages to the course folder, while the department avoids installing a PC in every room. Room count, mounting method and OPS requirement are agreed per project.

FAQ

Request a Quote

Request a quote for the QM-86HY 86 inch smart board, or send us your lecture room plan and we will advise on size, mounting and OPS configuration.
