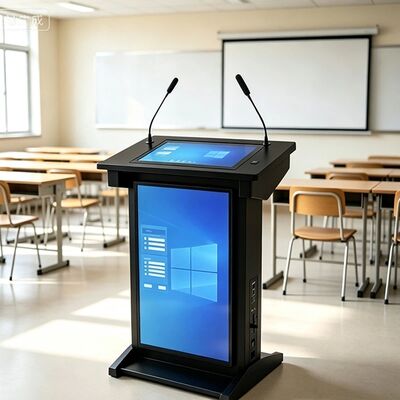

Qtenboard QM-2233JT-L 22 Inch Capacitive Touch Android 11 Compact Single-Screen Smart Digital Podium for Budget Classrooms

Name: Qtenboard QM-2233JT-L 22 Inch Capacitive Touch Android 11 Compact Single-Screen Smart Digital Podium for Budget Classrooms
Brand: Shenzhen Qunmao Display Technology Co., Ltd.
SKU: QM-2233JT-L
Price: 487.00 USD
Availability: InStock

Brand Name:	Qtenboard
Model Number:	QM-2233JT-L
MOQ:	5 Units
Price:	Contact for Quotation
Delivery Time:	5–10 working days after order confirmation
Payment Terms:	T/T,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE, RoHS

Main Touchscreen Size:

22 Inch (Single Screen)

Touch Technology:

Multi-Point Capacitive Touch (10 Points)

Operating System:

Android 11

Processor:

ARM Cortex Quad-Core, 2GB RAM, 16GB ROM

Screen Resolution:

Full HD 1920 × 1080

Brightness:

250 Cd/m²

Contrast Ratio:

3000:1

Viewing Angle:

178° / 178°

Response Time:

8 Ms

Interfaces:

USB 2.0 × 2, HDMI OUT × 1, LAN RJ45 × 1, Audio 3.5mm OUT

Wireless Connectivity:

Wi-Fi 2.4G, Bluetooth 4.2

Built-in Speakers:

2 × 10W Stereo

Material:

Cold-Rolled Steel With Powder Coating

Power Supply:

AC 100–240V, 50/60 Hz

Dimension:

1050 × 650 × 980 Mm (L × W × H)

Net Weight:

38 Kg

Application:

Budget Classrooms, Community Education, Developing Market Schools

Packaging Details:

3-Year Limited Warranty with Remote Technical Support and DMS Monitoring

Supply Ability:

8,000 Units per Month

Highlight:

Budget Smart Digital Podium

Compact Single Screen Lectern

Android 11 Classroom Podium

Product Description

💡

QM-2233JT-L — Ultra-Budget Smart Digital Podium for Universal Access

22″ Capacitive Touch · Android 11 · Compact Single-Screen · MOQ 5 Units

📖Product Overview

The Qtenboard QM-2233JT-L is our ultra-budget smart digital podium, purpose-engineered to bring interactive teaching technology within reach of every school, regardless of budget constraints. This compact single-screen design features a 22-inch capacitive touchscreen powered by Android 11 on an energy-efficient ARM Cortex quad-core processor. By streamlining the feature set to essential smart teaching functions, it delivers core digital podium capability at a fraction of the cost of dual-screen models — ideal for developing markets, rural school digitization, and large-scale government tenders requiring maximum value per unit.

⭐Key Features

📊

Cost-Optimized Single Screen

22-inch capacitive touch display serves as both instructor control and content surface, eliminating secondary screen cost while maintaining full smart podium functionality.

🔌

Android 11 Platform

Mature, stable Android OS supports essential educational apps including Google Classroom, Microsoft 365 mobile, and video conferencing without Windows licensing costs.

🖥️

Energy-Efficient ARM Architecture

Low-power quad-core processor with 2GB RAM and 16GB storage minimizes electricity consumption, enabling deployment in areas with limited power infrastructure.

🎯

Compact & Lightweight

Smaller dimensions (1050*650*980mm) and lighter weight (38kg) reduce transport and installation costs for large-scale multi-site deployments.

📡

Durable Steel Construction

Maintains Qtenboard's commitment to build quality with cold-rolled steel body and powder-coated finish designed to withstand daily classroom use.

🛡️

Scalable Supply Chain

Production capacity of 8,000 units per month with 5–10 day delivery for stock orders, optimized for large-scale education tenders and government programs.

🏆Project Case Studies

National Education Digitization — West Africa

A government education initiative in Ghana deployed 2,500 QM-2233JT-L units across rural secondary schools as part of a nationwide classroom technology program. The compact footprint, low power consumption, and affordable per-unit cost made it possible to equip schools that previously had no digital teaching tools. CKD (completely knocked down) shipping reduced import duties by 40%.

NGO Education Project — South Asia

An international education NGO selected the QM-2233JT-L for 180 community learning centers across Bangladesh and Nepal. The simplified Android interface required minimal teacher training — most educators were proficient within a single half-day workshop — while the durable steel construction withstood challenging environmental conditions.

🏭Why Choose Qtenboard

🏗️330,000 m² Manufacturing

Dual-factory integrated production with full-process quality control from SMT to final assembly

🔬72-Hour Aging Test

Every unit undergoes extended burn-in testing and multi-point quality validation before shipment

🌍Global Certifications

CE, RoHS, FCC, WEEE certified. Flexible OEM/ODM/SKD/CKD supply models for worldwide partners

🛠️DMS Remote Support

Remote monitoring, troubleshooting, and firmware updates across entire campus deployments

💬Frequently Asked Questions

❓Why a single screen instead of dual screen?

The single-screen design is a deliberate cost optimization. The 22-inch touch display serves both as the instructor's interactive control surface and the content display. For budget-constrained projects, this delivers 80% of the smart teaching functionality at approximately 50% of the cost of a dual-screen model.

❓Can the QM-2233JT-L connect to an external projector or TV?

Yes, the HDMI output port enables connection to any external display, projector, or large-format TV. In this configuration, the podium's 22-inch screen serves as the touch control surface while content is displayed on the larger external screen for student viewing.

❓What is the minimum order quantity?

The MOQ is 5 units, reflecting this model's positioning for institutional and bulk procurement. For evaluation purposes, single sample units can be arranged through our sales team with a sample fee that is credited against the first bulk order.
