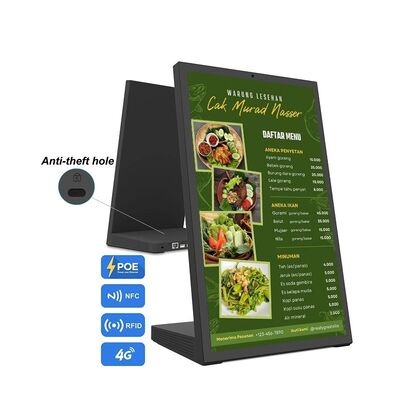

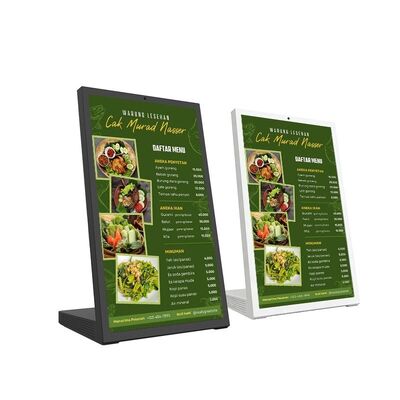

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants

Name: 23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
Brand: Shenzhen Qunmao Display Technology Co., Ltd.
SKU: Digital Menu Board
Price: 487.00 USD
Availability: InStock

Brand Name:	Qteboard
Model Number:	Digital Menu Board
MOQ:	1
Delivery Time:	5 - 10 days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Size:

8 Inch

Warranty:

1 Year

Max Resolution:

800*1280

Color:

White/black

Highlight:

23.8 inch digital menu board

split screen digital menu board

video playback digital menu board

Product Description

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants

About Qtenboard

Qtenboard - The Top Hardware Supplier for Digital Menu Board in China

Dual Manufacturing Bases in Shenzhen & Guangzhou

Qtenboard operates two modern production facilities in Shenzhen and Guangzhou, ensuring consistent quality control, stable supply capacity, and flexible large-scale production.

Over 300,000 m² of integrated manufacturing space
Automated and semi-automated production lines
Daily production capacity of up to 200 units
48-hour continuous aging and stability testing
Global Compliance & Certifications - CE * FCC * RoHS * PSE * UL (optional)
Flexible OEM / ODM Manufacturing Support

Core Features

Compact Desktop Design

Fits neatly on tables without affecting dining space or table turnover.

High-Definition Display

HD LCD screen with vivid colors and balanced brightness, making food images more attractive and appetizing.

Images & Video Menus

Display dish photos, short food videos, combo recommendations, and promotional content to drive upselling.

Self-Ordering

Minimizes manual order-taking and keeps operations smooth, even during peak hours.

Multi-Language Support

Easy language switching, ideal for tourist areas, airports, and international restaurant chains.

Plug-and-Play Deployment

Ready to use out of the box, perfect for fast rollout and easy replication across chain stores.

Product Highlights

Split-Screen Display

Display multiple content sections on one screen, such as menu items, promotions, and recommendations, all at the same time.

POS & Ordering System Integration

Compatible with mainstream POS and ordering systems for order synchronization and data analysis.

Offline & Online Playback Modes

Continues displaying menu content even during network interruptions, ensuring uninterrupted business.

Responsive Touch

Highly responsive touch interface with intuitive operation suitable for all age groups.

OEM & Appearance Customization

Customizable logo, UI style, and boot screen to match brand identity and chain standards.

Centralized CMS Management

Easily manage all menus remotely, arrange contents, support rich media, control multiple locations, and ensure smooth playback.

OEM Configuration Options

Resolution

2K, 4K

Chip

352, 3566, 3576, 3588

Optional Touch

Capacitive Touch, Infrared Touch, No Touch

Interface

HDMI IN, USB, LAN 1000/100, SD/TF, 4G

System

Android 9, Android 11, Android 14, Android 16, Windows 10/11/pro

Technical

WIFI 5, WIFI 6, Bluetooth 5.4

Size

21.5", 23.8", 27"

Technical Specifications

The following technical parameters are based on a 23.8-inch QM-2428MB model. If you need technical parameters for other sizes, please contact Qtenboard.

Display Parameters
Brand	Qtenboard
Model	QM-2428MB
Screen Size	23.8 inch
Resolution	19201080 (2K); 38402160 (4K)
Angle of View	178°
Contrast Ratio	3000:1 / 4500:1
Display Rate	16:9 / 9:16
Back Light	LED
Brightness	≥300 / 400 / 500 cd/㎡
Refresh Rate	60 / 120 HZ
Color	16.7M (8-bit) / 1.07B (10-bit)

System Configuration
Operation System	Android
Version	9.0 / 11.0 / 13.0 / 14.0 / 16.0
CPU	Quad core A53, Main frequency up to 1.9GHz
GPU	Mali T450
RAM	1 / 2 / 4 / 8 GB
Storage Memory	8 / 16 / 32 / 64 / 128 GB
Interface	HDMI In1, USB2.02, TF card1, RJ451
Audio Interface	3.5mm *1
Network	1pc, 10M/100M/1000M Adaptive Ethernet
WIFI & Bluetooth	Built in WIFI (2.4G/5G single-signal) & BT 4.2 / 5.0 / 5.4
3G/4G	Optional

System Function
Decoding Capability	Supports 2/4K video and picture decoding and playback
Software Application	Support to install the third-party software
Language	English etc language
Boot Animation	Support to customize
Infrared Remote Control	Operate system by remote control
Audio Function	Support left/right channel output, built-in double 8Ω power amplifier
Power-on/off	Remote control/timing/network wake-up/self-start
System Authorization	Allow root permission and customize software development
Mouse Mode	Support wired/wireless mouse or use keyboard
System Update	Support local and remote upgrade
Play Mode	Audio: MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP etc Picture: JPG, BMP, PNG etc Video: AVI, rm, rmvb, MKV, WMV, MOV, MP4 etc
Typing	Standard Android keyboard as default, can install the third party typing

Software Function (CMS Optional)
Background Support	Web/mobile IE (local network/WAN)
Play Mode	Networking/standalone
Play Support	Video/picture/subtitles/PPT/web/weather/clock etc mixture to play
Smart Splicing	Support custom playing modes to splice as setting
Timing Function	Support to set playing custom program in time period
Terminal Administration	Administrator can create and modify account for level-to level administration

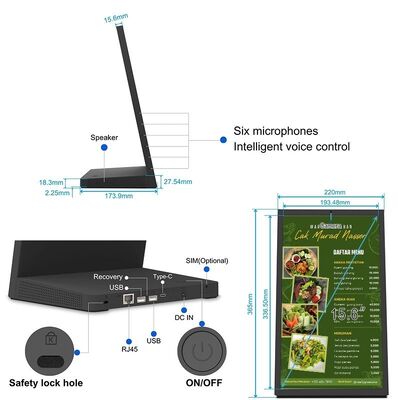

Machine Parameters
Color	Black / White / Others
Frame Material	Aluminum (oxidized wire drawing)
Body Material	Metal cold rolled steel plate (metal coating)
Surface Material	3mm tempered glass (physical)
Packing Material	Neutral carton / Wooden frame / Wooden box
Install Ways	Mount-on wall/Embedding/Hang/Bracket

Electrical Features
Scenarios	Indoor
Rated Voltage	AC110-220V
Stand by Power	≦0.5W
Rated Power	≦80W
Suitable Environment	Temperature: 0℃~55℃ / Humidity: 10%RH~90%RH
Storage Environment	Temperature: -5℃~60℃ / Humidity: 10%RH~90%RH

* Technical parameters above are for the 23.8-inch QM-2428MB reference model. For detailed specs of other sizes please contact Qtenboard.

Applications

Restaurants and Diners

Ideal for displaying digital menus and featured dishes.

Shopping Malls and Food Courts

Perfect for promoting limited-time offers and set meals.

Hotels and Cafes

Well-suited for presenting menus, promotions, and brand visuals.

OEM/ODM Customization Capabilities

Feature	Description
Brand Logo & Boot Animation	Personalize your product with custom logos and startup animations for full brand identity.
UI/OS Deep Customization	Tailor system interface, themes, and functionality to match your brand's unique requirements.
Chassis & Mold Modification	Modify device enclosures or design new molds for differentiated product appearance.
Packaging Design	Custom packaging to suit your branding and global shipping needs.
SN Tracking & Batch Production	Each unit tracked with a unique serial number to ensure quality and manage after-sales efficiently.
White Label Services	Offer products ready to market under your own brand name.
CKD/SKD Supply Capability	Flexible shipment options: complete, semi-knocked down, or fully assembled units.
Software Development & SDK/API Support	Integrate third-party applications or develop proprietary software to meet specific project needs.

Factory Overview

Factory Entrance

Modern and spacious facility designed for high-efficiency production.

Production Line

Fully automated assembly lines for consistent quality output.

Quality Control

Rigorous testing ensures reliable products for global clients.

Warehouse & Logistics

Organized storage and efficient shipping for worldwide distribution.

Global Case Studies

USA - Hotel Lobbies & Concierge Desks

Display dining menus and guest information in high-traffic areas.

France - Bakeries & Patisseries

Highlight daily fresh pastries and limited-time creations dynamically.

Germany - Airports & Transportation Hubs

Present food options, schedules, and service updates in real time.

UK - Bars & Lounges

Feature cocktail menus, happy hour specials, and events visually.

Italy - Fine Dining Restaurants

Showcase gourmet dishes and wine pairings elegantly.

South Korea - Bakeries & Dessert Shops

Highlight specialty cakes, drinks, and limited editions.

End-to-End Support for Global Brand Partners

Qtenboard provides a complete pre-sales and after-sales service system, ensuring stable long-term cooperation and smooth project delivery for international brands and distributors.

Pre-Sales Support

Dedicated Account Manager - One-on-one project follow-up, requirement analysis, and solution recommendation.
Technical Consultation - Professional guidance on product selection, system configuration, and compatibility.
Sample & Testing Support - Rapid sample delivery, testing assistance, and certification guidance.

After-Sales Support

24/7 Technical Support - Fast-response global support through email, WhatsApp, and online platform.
Remote Technical Assistance - Firmware debugging, CMS configuration support, and remote troubleshooting.
SN Tracking & Batch Management - Each unit is registered for traceability, warranty tracking, and issue diagnosis.
System Remote Upgrade (OTA) - Real-time firmware updates and feature enhancements via cloud.
Spare Parts Stock & Quick Replacement - Sufficient inventory prepared to ensure timely shipment and maintenance.
Global Shipping & Logistics Experience - Expertise in packaging, export documentation, and long-distance transportation for digital signage.

Frequently Asked Questions

What content formats does the digital menu board support?

It supports images, videos, animations, and GIFs for dynamic and engaging menu displays.

Can I update menus remotely?

Yes, prices, dishes, and promotions can be updated instantly via a centralized CMS from anywhere.

Does it work if the internet goes down?

Absolutely. The menu board supports offline playback to ensure menus are always displayed.

Can it manage multiple locations?

Yes, one CMS system can control menus across multiple stores, making chain management simple.
