| Brand Name: | Qtenboard |
| MOQ: | 5 |
| Price: | NA |
| Payment Terms: | ,T/T |
We are a professional factory with extensive experience in core materials and components for interactive whiteboards. Our core value lies in providing stable, high-quality, and cost-effective raw materials, core components, and flexible production cooperation models for global manufacturers (OEM/ODM/CKD/SKD), helping you enhance competitiveness.
Our core customer base consists of global interactive whiteboard brand owners, system integrators, and manufacturing plants seeking OEM/ODM/CKD/SKD support.

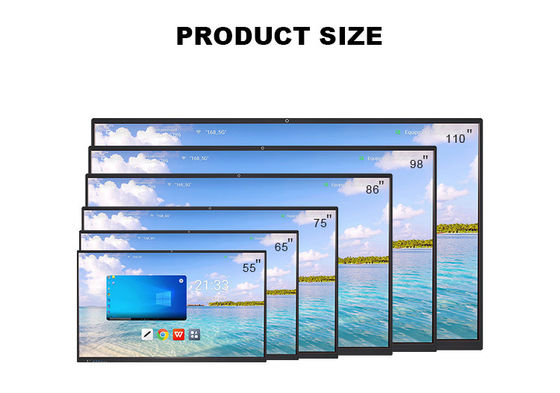

| Specification | 65" | 75" | 86" |
|---|---|---|---|
| LCD Size | 65" | 75" | 86" |
| Resolution | 3840×2160 4K | 3840×2160 4K | 3840×2160 4K |
| Brightness | 350cd/m² | 400cd/m² (typ.) | 450cd/m² |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 |
| Color Depth | 16.7M (8bit) | 16.7M (8bit) | 16.7M (8bit) |
| Response Time | 6ms | 6ms | 6ms |
| Viewing Area | 1428.5×803.5mm | 1650.2×928.3mm | 1895.04×1065.96mm |
| Visual Angle | 178°(H)/178°(V) | 178°(H)/178°(V) | 178°(H)/178°(V) |
| LCD Life | 60,000 hrs | 60,000 hrs | 60,000 hrs |
| Specification | 65" | 75" | 86" |
|---|---|---|---|
| CPU | Amlogic A311D2, A73×4+A53×4 @ 2.2GHz | Amlogic A311D2, A73×4+A53×4 @ 2.2GHz | Amlogic A311D2, A73×4+A53×4 @ 2.2GHz |
| GPU | G52×8 | G52×8 | G52×8 |
| Android OS | Android 13.0 | Android 13.0 | Android 13.0 |
| RAM+ROM | 4+32G/8+64G/8+128G (Optional) | 4+32G/8+64G/8+128G (Optional) | 4+32G/8+64G/8+128G (Optional) |
| WiFi | 2.4g & 5g a/b/g/n +ac | 2.4g & 5g a/b/g/n +ac | 2.4g & 5g a/b/g/n +ac |
| Bluetooth | 5.0 | 5.0 | 5.0 |
| Interface | 65" | 75" | 86" |
|---|---|---|---|
| HDMI OUT | ×1 | ×1 | ×1 |
| TF CARD | ×1 | ×1 | ×1 |
| HDMI IN | ×1 | ×1 | ×1 |
| LAN IN | ×1 | ×1 | ×1 |
| USB 3.0 | ×1 | ×1 | ×1 |
| Front Side USB 3.0 | ×2 | ×2 | ×2 |
| Specification | 65" | 75" | 86" |
|---|---|---|---|
| Touch Type | Infrared touch + zero gap bonding | Infrared touch + zero gap bonding | Infrared touch + zero gap bonding |
| Touch Points | 20 points | 20 points | 20 points |
| Touch Height | 1mm | 1mm | 1mm |
| Specification | 65" | 75" | 86" |
|---|---|---|---|
| Case Materials | Aluminium frame + tempered glass + metal cover | Aluminium frame + tempered glass + metal cover | Aluminium frame + tempered glass + metal cover |
| Unit Size (W×D×H) | 1485×88.3×901.8mm | 1707.1×88.5×1026.7mm | 1953.4×96.5×1166.6mm |
| Net Weight | 36±1.5 kg | 50±1.5 kg | 63±1.5 kg |
| Gross Weight | 43±1.5 kg | 58.5±1.5 kg | 74.5±1.5 kg |

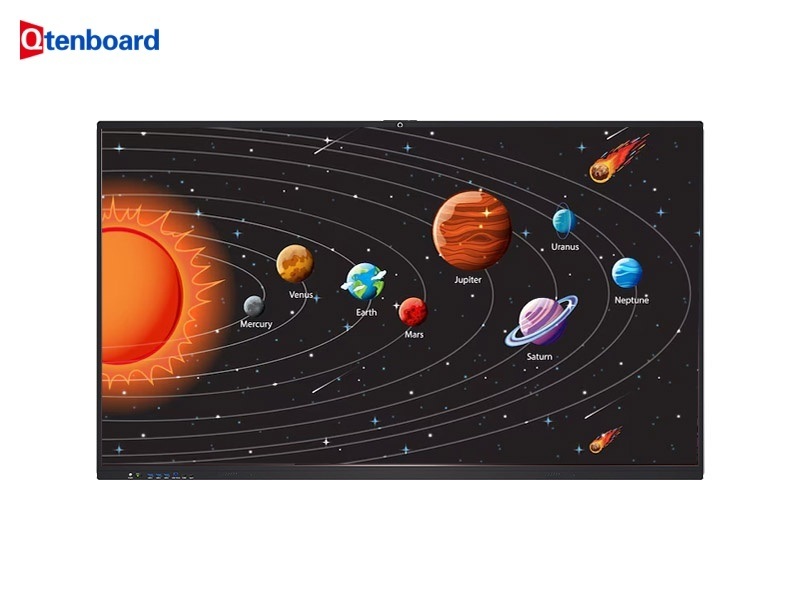

The advent of interactive whiteboards has redefined modern meeting experiences, delivering groundbreaking collaborative advantages for professional environments.
Featuring a crystal-clear 4K ultra-HD display, the interactive whiteboard ensures razor-sharp visibility for detailed data presentations and complex schematics. With support for 40-50 simultaneous touch points, the system enables true multi-user engagement - perfect for collaborative brainstorming sessions and real-time strategy mapping.
Enhanced with professional-grade diagramming tools, customizable templates, and seamless integration with video conferencing platforms, this solution transforms ordinary meetings into dynamic working sessions.
Welcome to contact us:
Email: info@qtenboardtouch.com
Phone: +86 15920011166
|
