| Brand Name: | Qtenboard |
| MOQ: | 5 |
| Price: | NA |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |

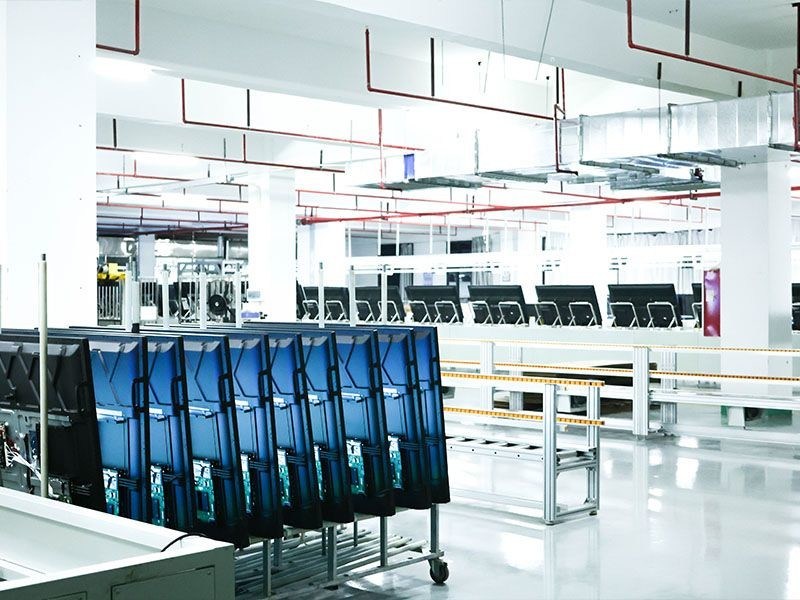

We are a professional factory that has been deeply engaged in the core materials and components of interactive whiteboards for many years. Our core value lies in providing stable, high-quality and cost-effective raw materials, core components and flexible production cooperation models for global peer manufacturers (OEM/ODM/CKD/SKD), helping you enhance your competitiveness.
Our core customer base consists of global interactive whiteboard brand owners, system integrators, and manufacturing plants seeking OEM/ODM/CKD/SKD support. We do not sell directly to end consumers.
9679 Chip With AI Function and Whiteboard Software with Subjects such as Geography, Chemistry and Music etc.
65'' | 75'' | 86'' and more
| Specification | 65" | 75" | 86" |
|---|---|---|---|
| Resolution | 3840*2160 4K resolution | 3840*2160 4K resolution | 3840*2160 4K resolution |
| Brightness | 350cd/m² | 400cd/m² (typ.) | 450cd/m² |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 |
| Color Depth | 16.7M(8bit) | 16.7M(8bit) | 16.7M(8bit) |
| Response time | 6ms | 6ms | 6ms |
| Viewing area | 1428.5mm(H)×803.5mm(V) | 1650.2mm(H)×928.3mm(V) | 1895.04mm(H)×1065.96mm(V) |
| Visual Angle | 178°(H) / 178°(V) | 178°(H) / 178°(V) | 178°(H) / 178°(V) |
| LCD life | 60,000 hrs | 60,000 hrs | 60,000 hrs |
| Specification | 65" | 75" | 86" |
|---|---|---|---|
| CPU | MEDIATEK 9679, Quad-core A73 | MEDIATEK 9679, Quad-core A73 | MEDIATEK 9679, Quad-core A73 |
| GPU | Mali G52-MC1 | Mali G52-MC1 | Mali G52-MC1 |
| Android OS | Android 14.0 | Android 14.0 | Android 14.0 |
| RAM+ROM | 4+32G/8+128G (Optional) | 4+32G/8+128G (Optional) | 4+32G/8+128G (Optional) |
| WIFI | 2.4G&5G | 2.4G&5G | 2.4G&5G |
| Bluetooth | 5.0 | 5.0 | 5.0 |
| RJ45 | 100M | 100M | 100M |
| Interface | 65" | 75" | 86" |
|---|---|---|---|
| LINE IN | *1 | *1 | *1 |
| LINE OUT | *1 | *1 | *1 |
| RJ45 | *1 | *1 | *1 |
| USB 2.0 | *2 | *2 | *2 |
| USB 3.0 | *1 | *1 | *1 |
| TYPE C | *1 | *1 | *1 |
| HDMI IN | *2 | *2 | *2 |
| Specification | 65" | 75" | 86" |
|---|---|---|---|
| Touch type | Infrared touch + zero gap bonding | Infrared touch + zero gap bonding | Infrared touch + zero gap bonding |
| Touch point | 40 point | 40 point | 40 point |
| Touch height | 1mm | 1mm | 1mm |
| Specification | 65" | 75" | 86" |
|---|---|---|---|
| Unit size (W*D*H) | 1485(L)*88.3(W)*901.8(H)mm | 1707.1(L)*88.5(W)*1026.7(H)mm | 1953.4(L)*96.5(W)*1166.6(H)mm |
| Packing size (W*D*H) | 1580(L)*205(W)*1000(H)mm | 1810(L)*205(W)*1150(H)mm | 2060(L)*205(W)*1331(H)mm |
| VESA Hole | 400*500mm, 4*M8 screw | 400*600mm, 4*M8 screw | 400*800mm, 4*M8 screw |
| Net Weight | 36±1.5 Kg | 50 ±1.5 Kg | 63 ±1.5 Kg |
| Gross Weight | 43±1.5kg | 58.5±1.5 Kg | 74.5±1.5 Kg |
| Container Type | 65" | 75" | 86" |
|---|---|---|---|
| 40HQ (for each size) | 220pcs | 166pcs | 138pcs |
|
